Tilpasset front alu ScS

Vi har stadig nogle tilbage fra første produktion. Her skal du selv bore huller til diskant op til lidt større diameter (6 mm), men vi har til gengæld sænket prisen med 500,-

Klik på kloden for data/tegning...

Killer design made easy!!!

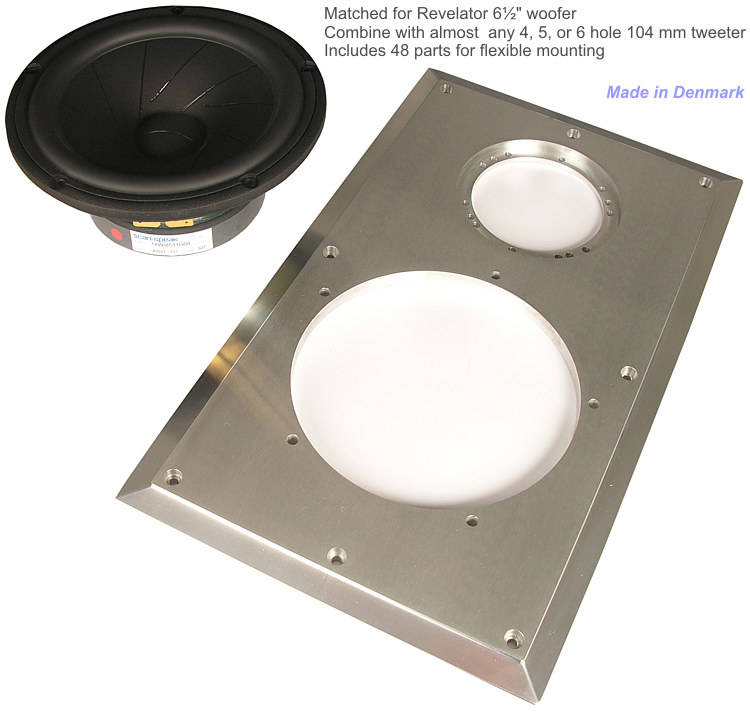

- Hand made front for ScanSpeak 18W Revelator series.
- Combine with any 104 mm tweeter from Peerless, Vifa or ScanSpeak.

For slim 3-4 mm tweeter face plates, just mount the 104 mm rubber gasket ring and you will have the same height as the ScanSpeak revelator tweeters (6 mm + gasket)

Pre-drilled holes for 4, 5 & 6 holes tweeter face plates.

The massive 10 mm aluminium front is extremely stabile and more stabile than any kind of wooden plates you can make. At the same time the 10 mm material thickness makes free airflow from behind the woofer and into the cabinet.

The woofer is not countersunk in order to bring the two driver aligned best way possible to obtain maximum acoustical phase in the speaker system.

Our “Master kit” fits right in.

Single piece priced since some will be using those for L R & Centre speaker for high-end inwall
