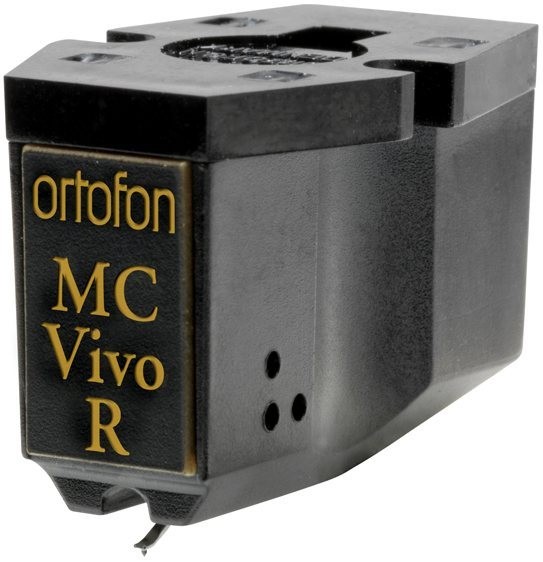

MC Vivo Red

1.625,00 DKK

Technical data

Output voltage at 1000 Hz, 5cm/sec.	0,5 mV
Channel balance at 1 kHz	< 1,5 dB
Channel separation at 1 kHz	> 23 dB
Channel separation at 15 kHz	> 15 dB
Frequency range at - 3dB	20-25.000 Hz
Frequency responce	20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force *)	> 65 µm
Compliance, dynamic, lateral	13 µm/mN
Stylus type	Elliptical diamond on alu cantilever
Stylus tip radius	r/R 8/18 µm
Tracking force range	1,6-2,0 g (16-20 mN)
Tracking force, recommended	1,8 g (18 mN)
Tracking angle	20°
Internal impedance, DC resistance	5 Ohm
Recommended load impedance	> 10 Ohm
Cartridge body material	Lexan DMX
Cartridge colour	Black
Cartridge weight	7 g
