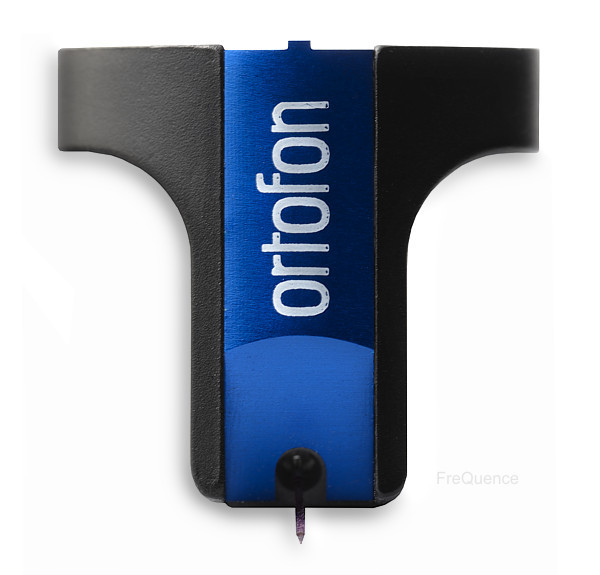

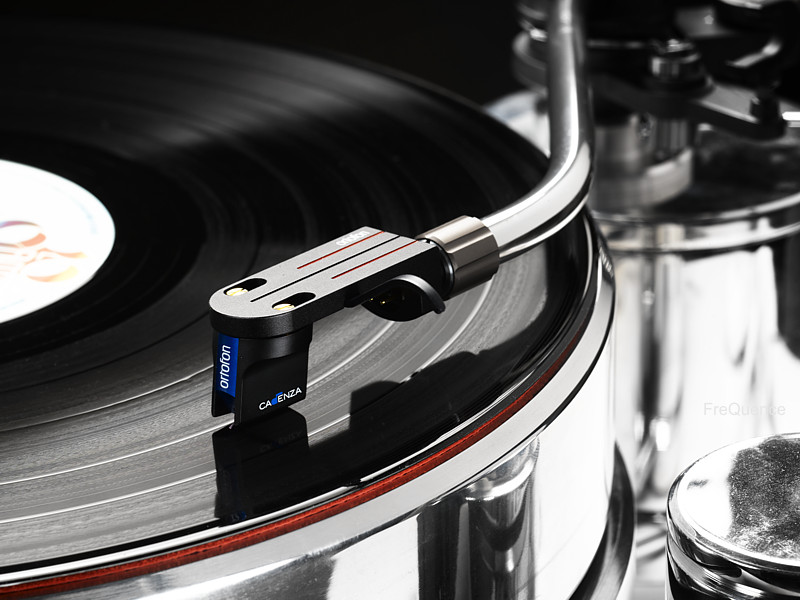

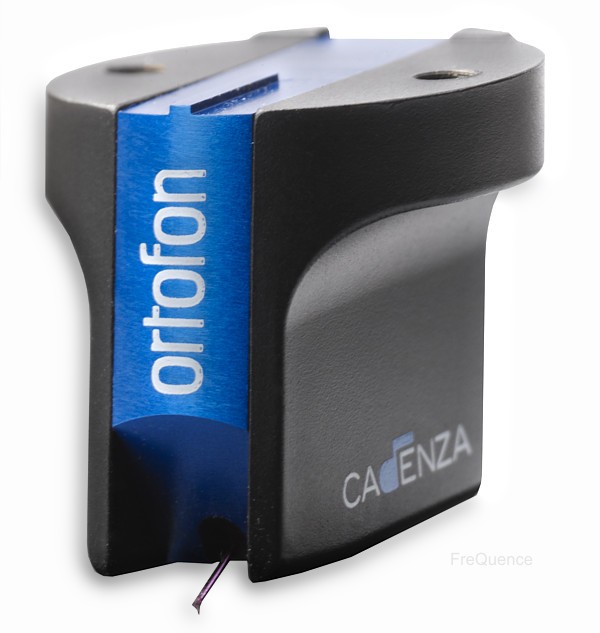

Cadenza Blue

8.245,00 DKK

Technical Data	Blue
Output voltage at 1000 Hz 5cm/sec	500 μV
Channel balance	< 1,2 dB
Channel separation at 1 kHz	> 23 dB
Channel separation at 15 kHz	> 15 dB
Frequency range at -3dB	20-50 kHz
Frequency response 20 - 20 kHz	+2/-1
Tracking ability at 315 Hz at recommended tracking force *)	80 μm
Compliance, dynamic, lateral	12 μm/mN
Stylus type	Nude FG 70

	Ruby cantilever
Stylus tip radius	r/R 6/70
Tracking force range	2,2-2,7g (22-27mN)
Tracking force recommended	2,5g (25mN)
Tracking angle	20º
Internal impedance, DC resistance	5 Ohm
Recommended load impedance	50- 200 Ohm
Cartridge body material	Stainless steel
	Aluminium
Cartridge colour	Blue/Black
Cartridge Weight	10,7 gram
