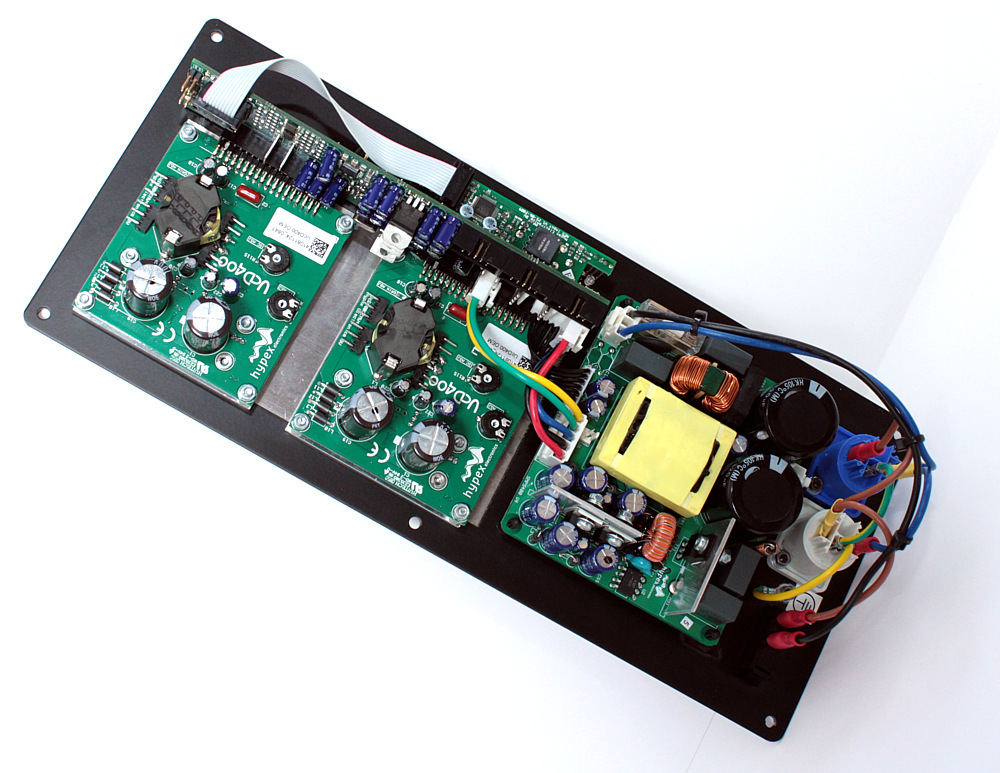

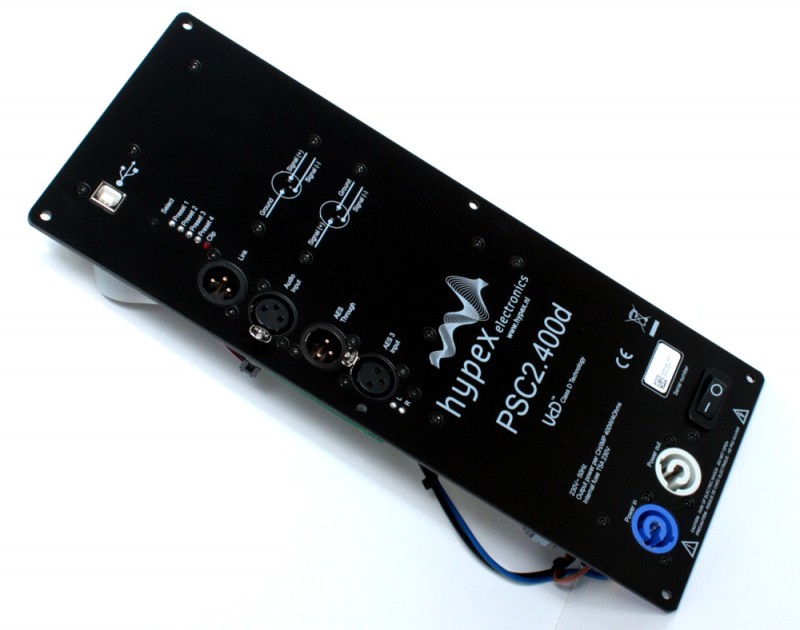

The PSC2 is a plate amp for use in powered speaker systems. As an active speaker controller, a PSC2 can form the basis of a powerful active two-way monitor. Figure 1 shows the audio path of the PSC2. The module has two 400Watt UcD modules implemented and is also available with a digital audio input AES/EBU, called the PSC2.400d version. The supply voltage is provided by a Switched Mode Power Supply (SMPS400) module, also a module from Hypex Electronics. A PC controls the PSC2 through the USB port. This connection is used to upload the configuration and filter settings. It will also be possible to update the firmware through USB

GENERAL FEATURES:

-2x UcD400OEM plate amplifier
-Powered by SMPS400
-Four programmable presets
-Balanced audio input
-Balanced audio through loop
-Powercon power connection
-Two channel active filtering
-Fully user-configurable DSP filters
-Firmware update by USB
-Digital version with AES/EBU input


APPLICATIONS:

This module can be used for the following setups:
- Active 2-channel system
- Active power sub-woofer

And with 2 modules it is also possible to set up a 3-channel system with one module for the separate Subwoofer, and a second module for the top in a 2-channel system.

All setups are possible with analogue and digital audio inputs AES/EBU.


Also available:
Analog only version, PSC2.400


TECHNICAL DATA:
Supply voltage: 180-264Volt AC/50Hz (switch able to 90-132Volt 60Hz)
Output power LS1: 400W @ 4Ohms
Output power LS2: 400W @ 4Ohms


MECHANICAL DATA:
Dimensions: 142mm x 330mm x 55mm (W x H x D)
Weight: 1.1Kg

NOTE:
No cables included

Firmware (ZIP) http://www.hypex.nl/docs/HFD/HypexFilterDesign%20v2.1.zip
