Byg aktiv højttaler og afstem lyden i det aktive delefilter sammen med DSP via din PC.
Når man kigger på priserne for aktive højttalere i den gode liga, kan man ikke sige dette er dyrt; selv med valg af gode enheder - og så har man oven i købet muligheden for helt selv at tune lyden, udbygge med subwoofer osv.
Denne version har digital indgang. Kan du undvære dette, er der en del at spare på AS.100 Features i øvrigt er de samme.
Flere mulige tilkøb:
- Fjernbetjening
- Knap panel
- Klik på kloden for manual...
- Download filter design program gratis her...
- Udskæringsmål mm. downloades her...

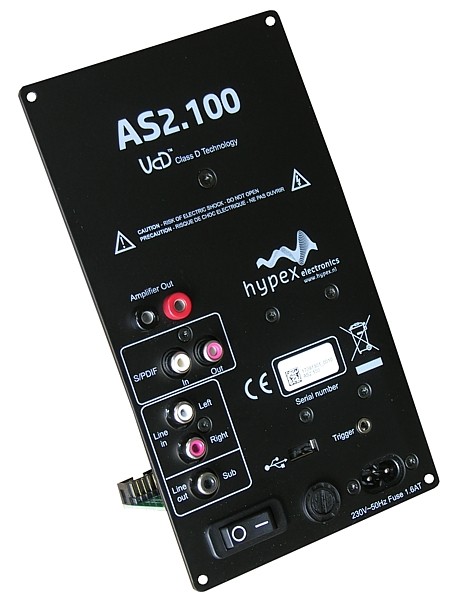

The AS2.100 is a plate amp for use in powered speaker systems. Being an active speaker controller, the AS2.100 forms the basis of, for instance, a powerful active two-way monitor. In stereo mode one AS2.100 will power an active master / passive slave pair. The AS2.100 Digital is a AS2.100 including the optional digital add-on board.
Specifications
GENERAL FEATURES:
- Fully controlled by PC software (included)
- Cross-over settings fully customisable (real-time)
- UcD100OEM (2x) powered
- Stereo analogue input
- S/PDIF input and output
- Sampling rates up to 192kHz
- USB Audio
- Infrared remote control (optional)
- Automatic input scanning
- compact design
- Fully user customised filtering
- Button panel controlled
- Remote controlled
- Filtered sub out
- Link connection master / slave (only with two modules)
- Low signal to noice (-100dB)
APPLICATIONS:
When one module is used:
- Stereo passive filtered system
- Bridged mode for single subwoofer (max 140Watt @ 4 Ohms)
- Mono/mid 2-way setup (tweeter + sub)
When two modules are used:
- 2-way active filtered stereo system
- 2 channel system, both modules in bridge mode for more power
- 3-way active filtered in combination with an active subwoofer (filtered sub out on AS2.100)
All setups are possible with analogue and the digital audio inputs SPDIF and USB.
TECHNICAL DATA:
Supply voltage: 230Volt AC/50Hz +/-10%
Output power LS1: 100W @ 4Ohms
Output power LS2: 100W @ 4Ohms
MECHANICAL DATA:
Dimentions: 115mm x 200mm x 60mm (W x H x D)
Weight: 1.6Kg
