HNR12

275,00 DKK

HNR12

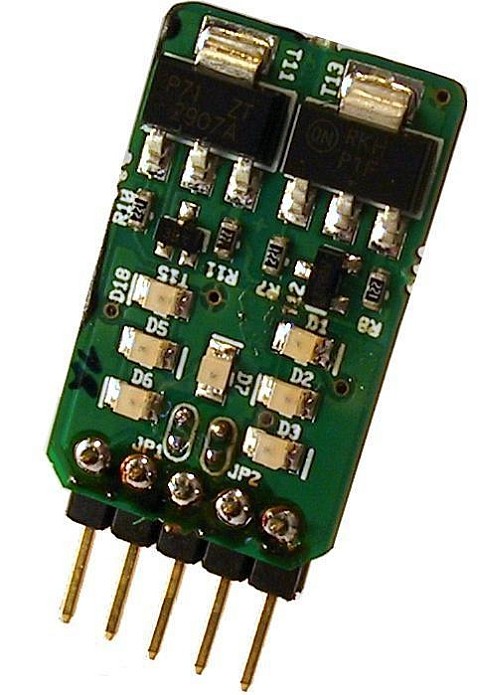

The HxR series regulators are high performance voltage regulating components targeted at performance-critical audio applications. Key performance parameters exceed that of industry-standard integrated circuits by several orders of magnitude. Kelvin sense connections provide point-of-load (local) regulation without requiring physical proximity. The HNR12 is a 12V negative regulator. Specifications APPLICATIONS: - Preamplifiers and buffers - RIAA input stages - Playback head amplifiers - Performance upgrade for existing products GENERAL FEATURES: - Ultra-low noice - Wide bandwidth - Excellent ripple rejection - Low, load-independend output impedance - Kelvin sense connections - Size and pin compatible with TO-220 style regulators ELECTRICAL FEATURES: - Max. input voltage: 60V - Output voltage: -12V - Max. output current: 600mA - Power dissipation: 2W - Output impedance: 50mOhm - Ripple rejection: 110dB - Output Noice Voltage: 290nV MECHANICAL FEATURES: - Weight: 5g - Dimentions: 25mm x 15mm
