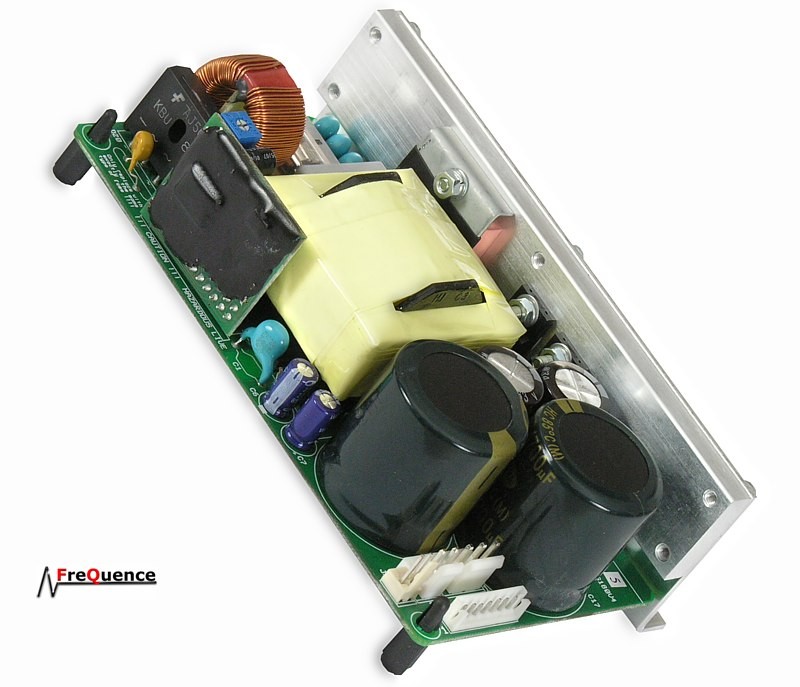

The SMPS180 Power Supply is a 180W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD™ amplifier modules.
Now included with ALL cables, price is increased to € 135,00 + VAT (DK25 % =1257,19)

Specifications

APPLICATIONS:
- Supply for single or multiple amplifiers of the UcD™ range
- Active loudspeakers

HIGHLIGHTS:
- High efficiency
- Universal mains input voltage
- Near unity Power Factor
- Low EMI

GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Ajustable output voltage

ELECTRICAL FEATURES:
- Operating Line Input Voltage: 85-264Vac
- Full Power Operating Input Voltage: 100-264Vac
- Output Voltage 2x35-2x45Vdc
- Output current: 3.4A
- Output power: 300W
- Output power: 180W @20Hz
- Switching Frequency: 100kHz

MECHANICAL FEATURES:
- Weight: 400g
- Dimentions: 135mm x 83mm x 49mm
- Cable set included
