Power supply SMPS400/67

1.145,00 DKK

SMPS400/67

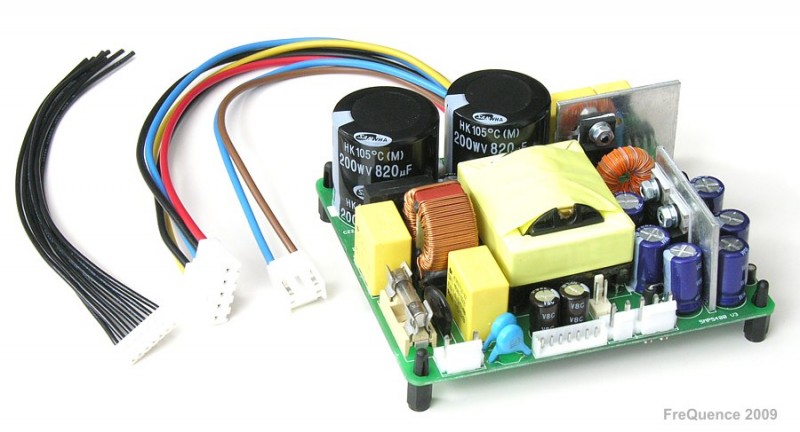

The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD™ amplifier modules. This 67 volt model is made for the UcD400 modules. Also available in 49 Volt. Ready for ordering! Orders will be shipped the end of May! Specifications APPLICATIONS: - Supply for single or multiple amplifiers of the UcD™ range - Active loudspeakers HIGHLIGHTS: - High efficiency - Selectablel input voltage range - Extremely small form factor - Low EMIl GENERAL FEATURES: - Advanced over current protection - Remote controlled operation - Low weight - Compact Fits in 1HE (additional insulation required) - Fixed output voltage (2 versions available) ELECTRICAL FEATURES: - High Line Input Voltage: 190-250Vac - Low Line Input Voltage: 95-130Vac - Output Voltage: 2x67Vdc - Max. Output power: 600W - Max. Output power: 400W @20Hz - Switching Frequency: 100kHz MECHANICAL FEATURES: - Weight: 300g - Dimentions: 105mm x 100mm x 42(37)mm

Varer		Pris		Køb antal
Power supply SMPS400/67 Model/Varenr.: SMPS400/67		1.145,00 DKK	Vægt: 0,30 kg.	stk.
